| HS CODE | 8703101900 |
| Qty/20'GP (Assembled) | 1 UNIT |
| Qty/40'GP (Assembled) | 3 UNITS |
| Passenger capacity | 2 seats |
| Max.Speed | 18-30km/h |
| Range(loaded) | 60km-80km(level road) |
| Climbing Ability | 30% |
| Braking Distance | ＜6m |
| Min.Turning Radius | 4.4m |
| Recharge time | 8~10h |
| L×W×H | 3420*1315*1975mm |
| CARO L×W×H | Aluminum Cargo 1500mm*1100mm*280mm |
| F/R Tread | 980mm//1085mm |
| Axle Distance | 2515mm |
| Max. loading | 500kg |
| Motor | 48V/5KW AC motor |
| Controller | 48V |
| Battery | Maintenance-free battery 8V /150Ah*6PCS |
| Body & Roof | The front cover, seat barrel and body cover parts are injection
molded with automobile special PP material /Automobile PP material
injection molding integrated molding roof |
| Windshield | Foldable windshield |
| Seats | Ergonomic seat, leather fabric |
| Rear view mirror | Left and right mirrors |
| Bumper | Front Bumper |

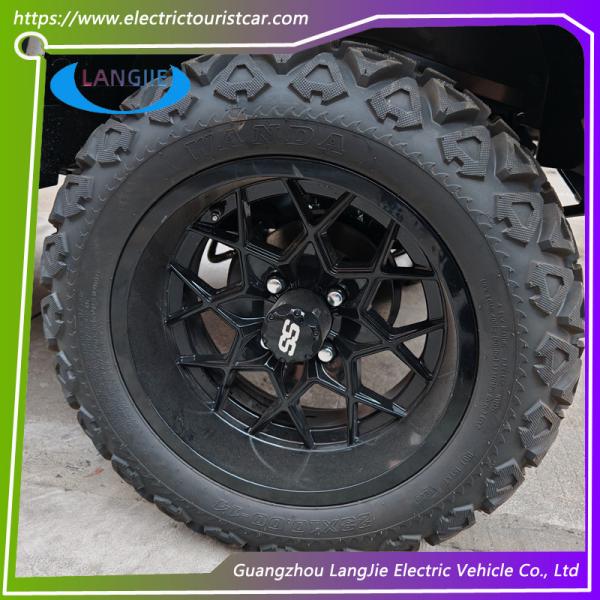

| Tire | 23*10.5-12 Aluminum steel rim |
| Chassis | Robotic welding chassis with high-end coating processing , Super
strong, No Rust |
| Front Suspension | Double swing arm independent front suspension + spiral spring +
cylinder hydraulic shock absorption. |
| Rear suspension | Overall rear axle, speed ratio 12.49:1 spiral spring shock
absorption + cylinder hydraulic shock + rear stabilizer bar |
| Lighting system | LED front combination light (near light, high beam, turn signal,
daily running light, position light) LED rear taillight (brake
light, position light, turn signal); snail horn, reversing buzzer |
| Brake system | Double-loop four-wheel hydraulic brake, four-wheel disc brake +
electronic brake parking |
| Steering system | Double gear rack steering system, automatic clearance compensation
function |
| Charger | Smart on-board charger Output:48V 25A, Input AC 220V/50HZ～60HZ |
| Dashboard | Injection molding instrument panel, electric lock switch, single
arm combination switch, gear switch, water cup holder;, double USB
power supply, 12V power supply. |
| Instrument | Multi-instrument |
| Seat color {standard colors} | Black,Beige | Black and beige are standard colors. Can be freely selected |
| Roof | Black |
| Optional color | Ocean Grey ,Sapphire blue,Pearl black ,Pearl White ,Apple Green
,Matt Black ,Dark Green ,Orange ,Red |
Feature And Application
This section has 2 seats, can load a variety of configurations, can
be customized to install bus seats and other facilities, suitable
for campus, villages, airports, terminal, real estate, tourist
attractions, parks, amusement park, community, garden style hotels,
resorts, villas, city street, port etc.
Key Words:electric airport luggage cart,electric cargo vehicle,electric
cargo truck,electric utility vehicle,electric pickup truck,electric
carry van,left hand drive mini trucks

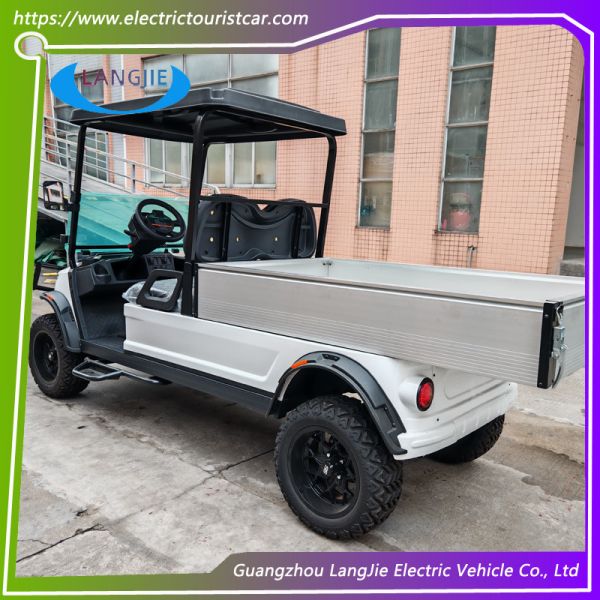

Showing Photos:
FAQ
1, what's your warranty time?
All Langjie golf cart sold by us are quality guaranteed.
We provide 1 year warranty for main parts to our electric vehicles
when you get them.Our main parts warranty, such as: motor,
electronic control, rear axle, charger warranty for one year.
Others are not warranty. If it is artificial, there is no warranty.
If it is a quality issue, provide relevant pictures, descriptions,
and videos to let our company's relevant departments confirm
whether there are quality issues.
2, What's the production time?
Normally for 30 working days
3, What's your payment term?
T/T 30% deposit and balance paid before shipment
4, Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We
are the profeesional for the aftersales,
Welcome to visit our factory !
